• Product Detail:

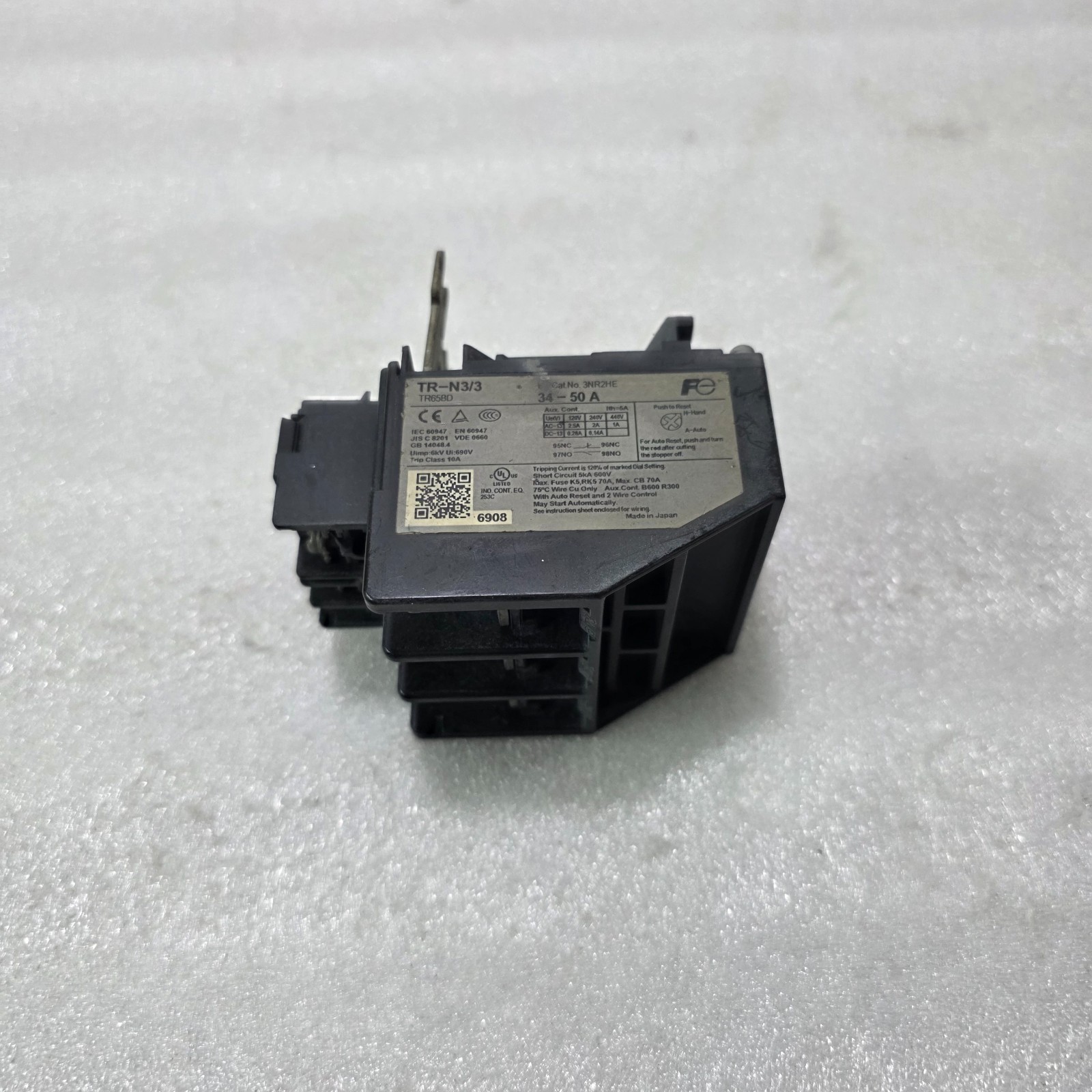

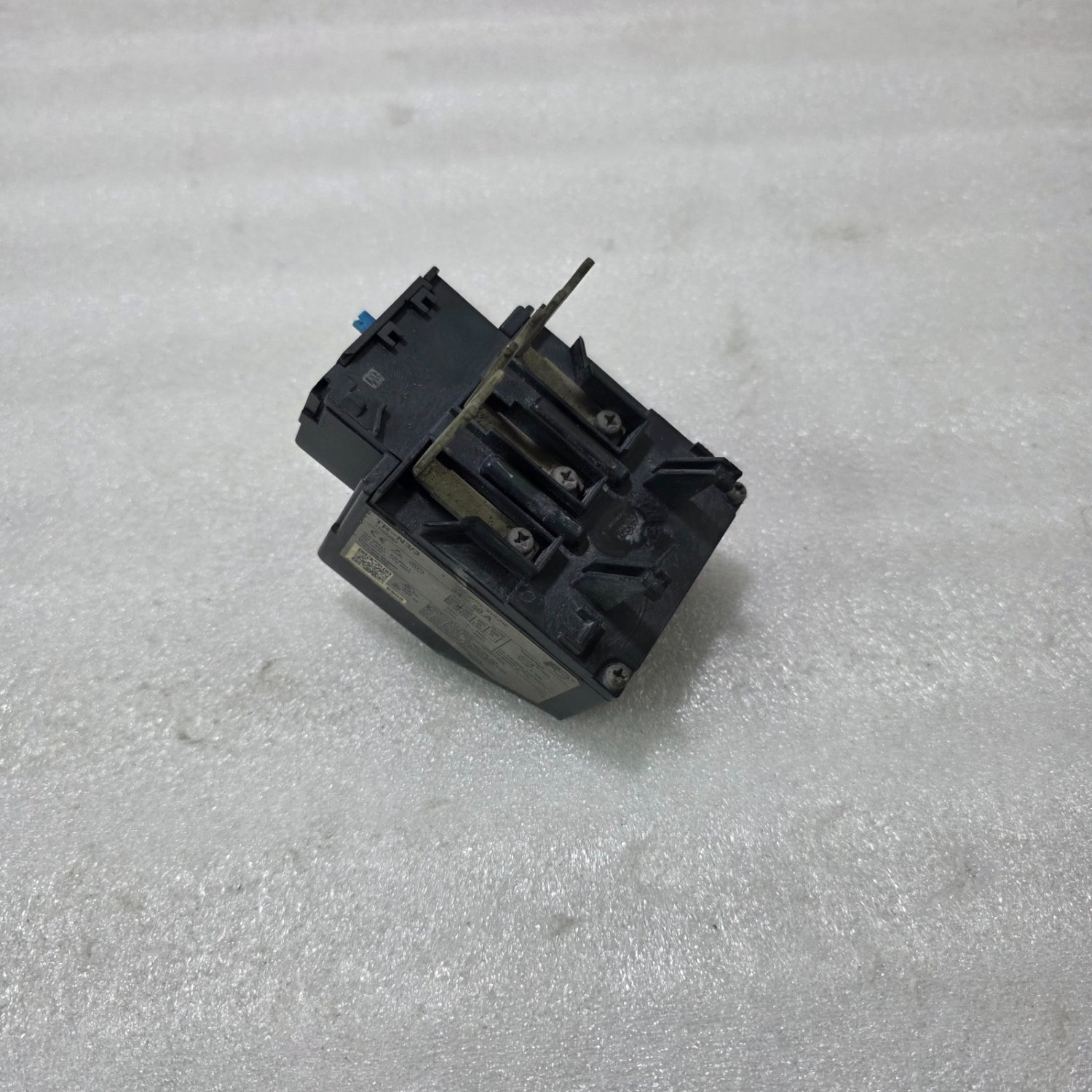

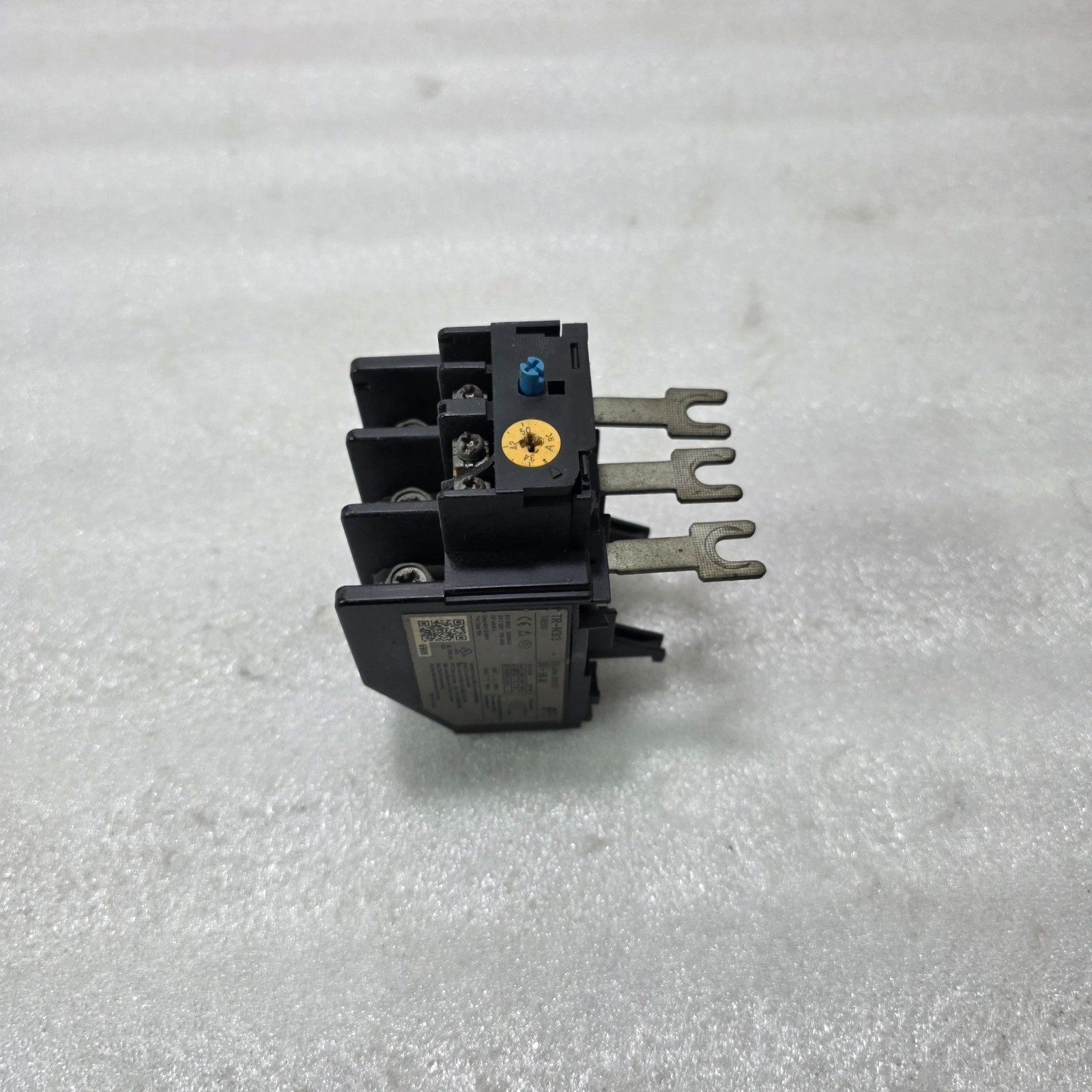

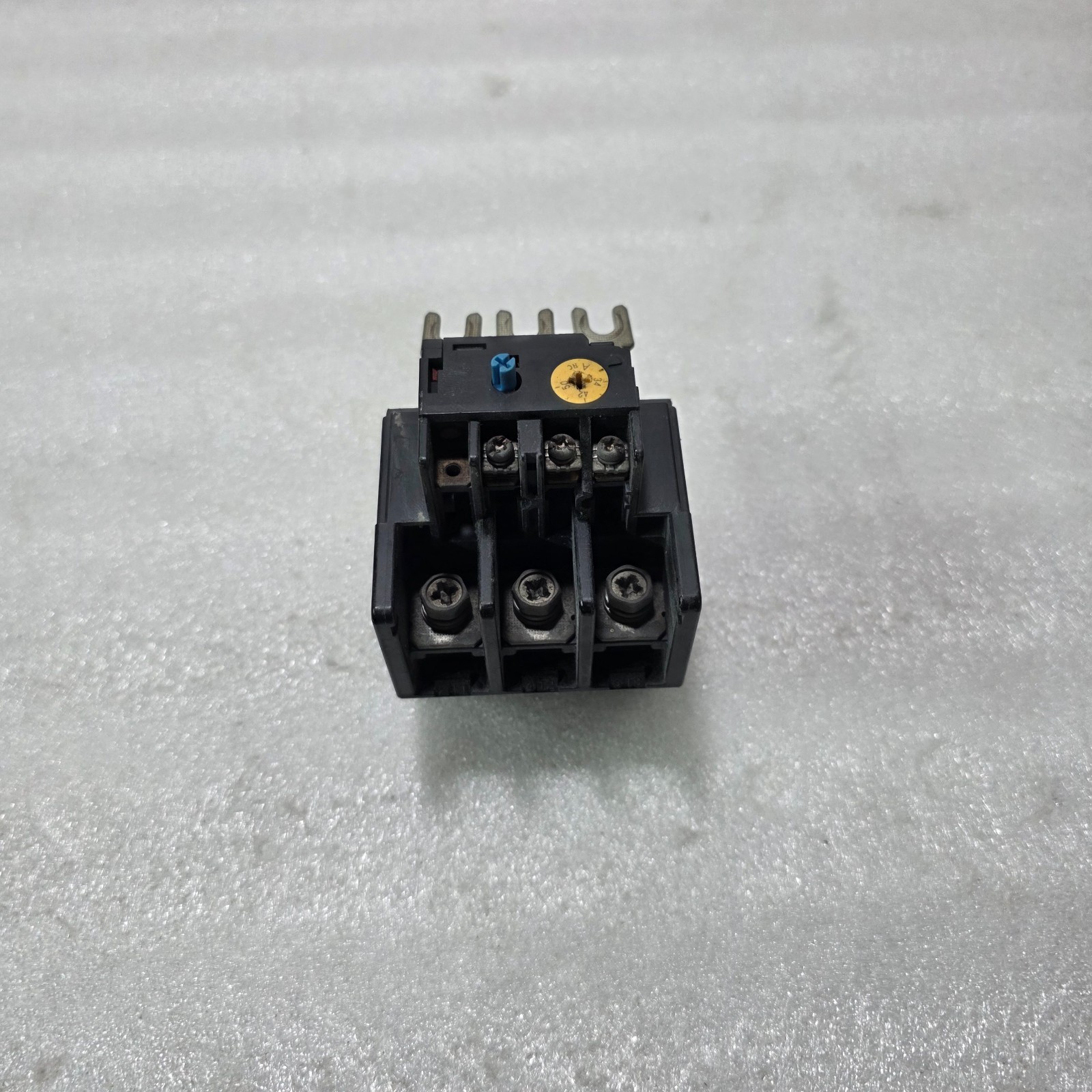

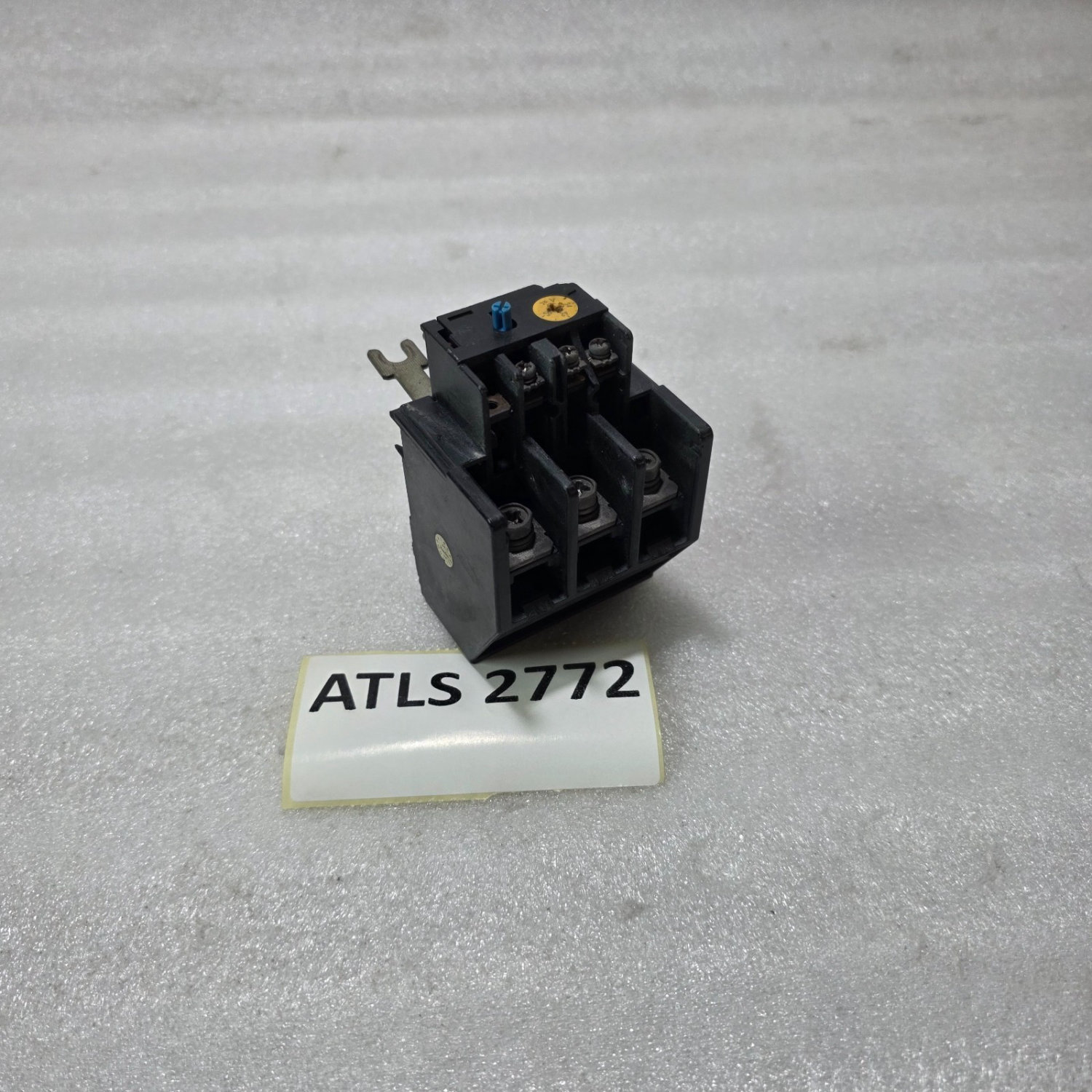

FUJI ELECTRIC TR-N3/3 / TRN3 THERMAL OVERLOAD RELAY 34A – 50A 1NO+1NC Up to 690V AC — Class 10A IEC60947

BRAND: FUJI ELECTRIC

SERIES / PRODUCT LINE: TR-N3

PART NUMBER: TR-N3/3

ALSO KNOWN AS: TRN3/3 / TN65BD / Cat. No. 3NR2HE

TYPE: THERMAL OVERLOAD RELAY

CURRENT SETTING RANGE: 34A – 50A

AUXILIARY CONTACTS: 1NC (97-98) + 1NO (95-96)

RATED OPERATIONAL VOLTAGE: Up to 690V AC (Uimp 6kV / Ui 690V)

AC-15 RATED CURRENT (Ie): 240V: 2.5A / 380V: 2A / 440V: 1A (AC-15); 0.39A / 0.1A (DC-13)

TRIP CLASS: Class 10A

TRIPPING CURRENT: 109% of marked dial setting

SHORT CIRCUIT RATING: Max Fuse K5/K5: 70A / CB 76A; Iscmax 5kA at 600V

AUX CONTACT RATING: B600 R300

RESET TYPE: Manual (push) + Auto reset / 2-wire control

WIRE TYPE: 75°C Cu wire only

STANDARD / APPROVALS: IEC 60947, EN 60947, JIS C 8201, VDE 0660, GB 14048.4, UL, CE

COUNTRY OF MANUFACTURE: MADE IN JAPAN
