• Product Detail:

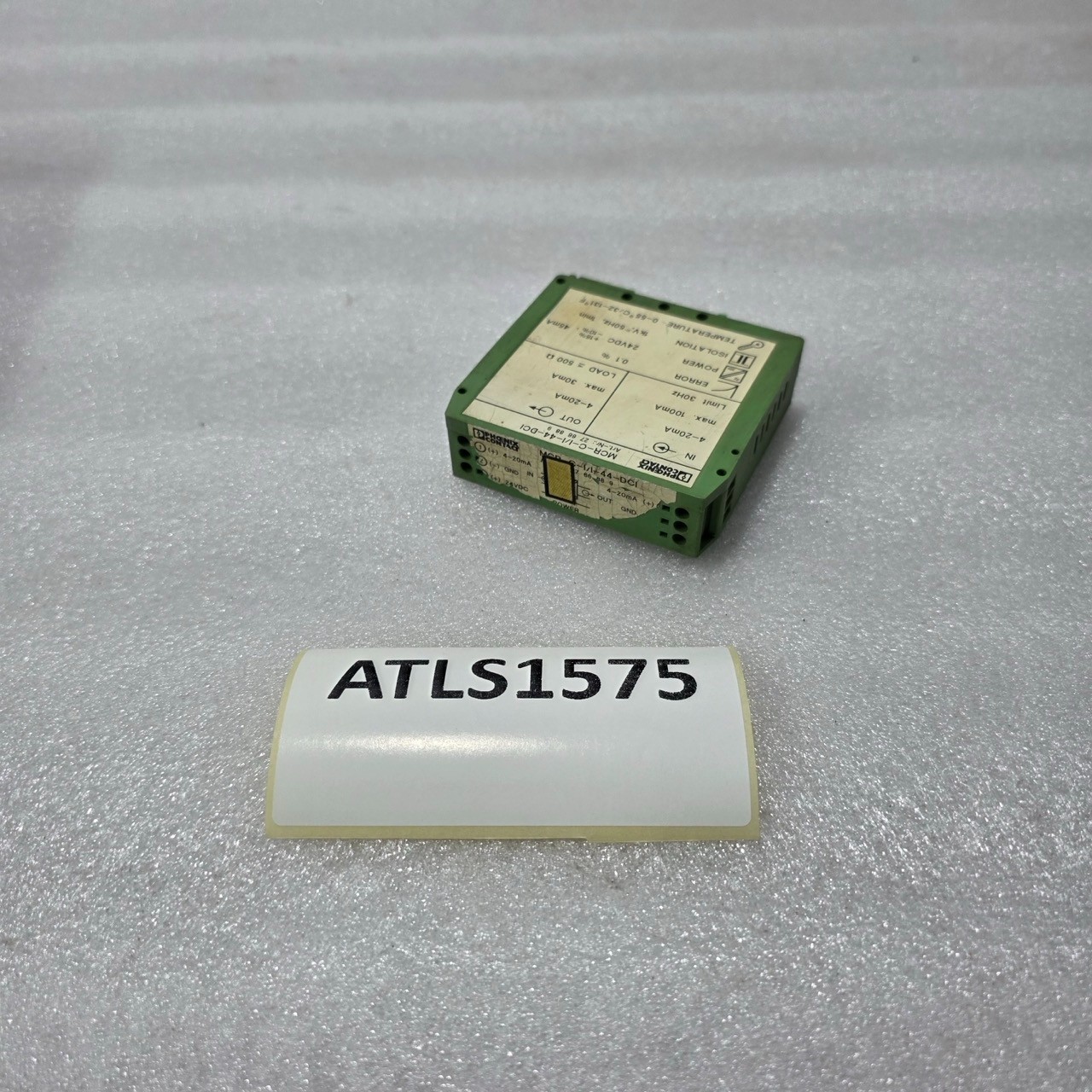

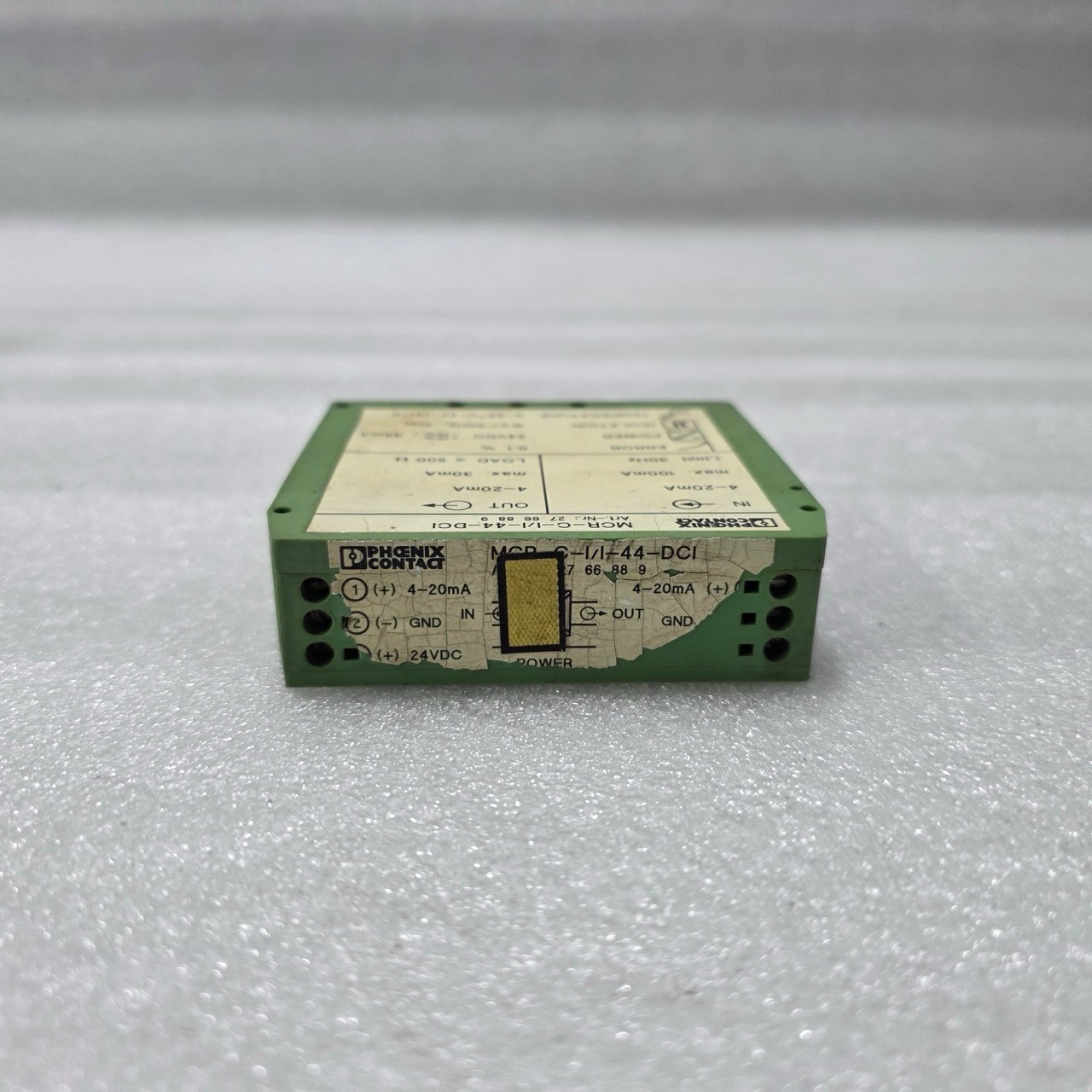

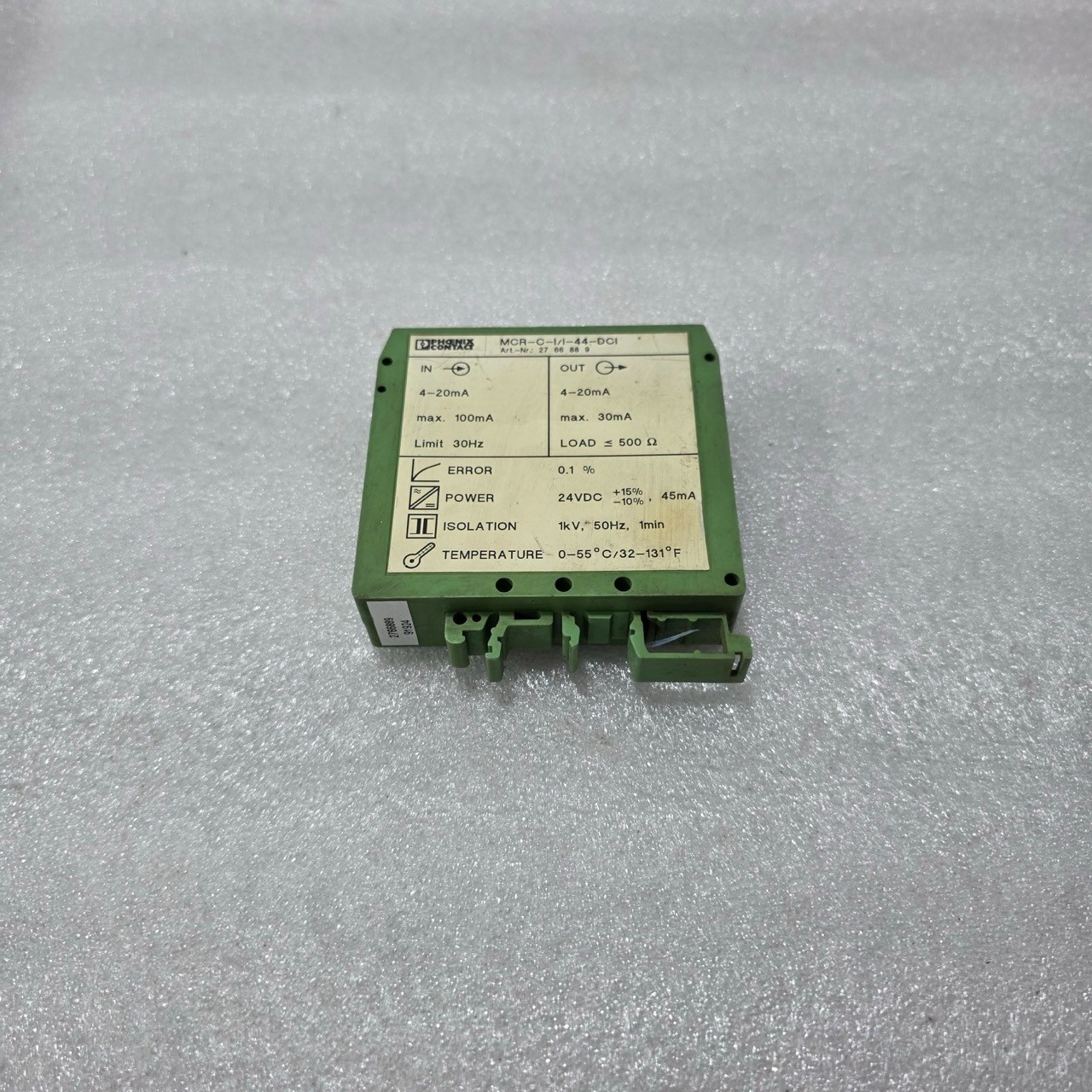

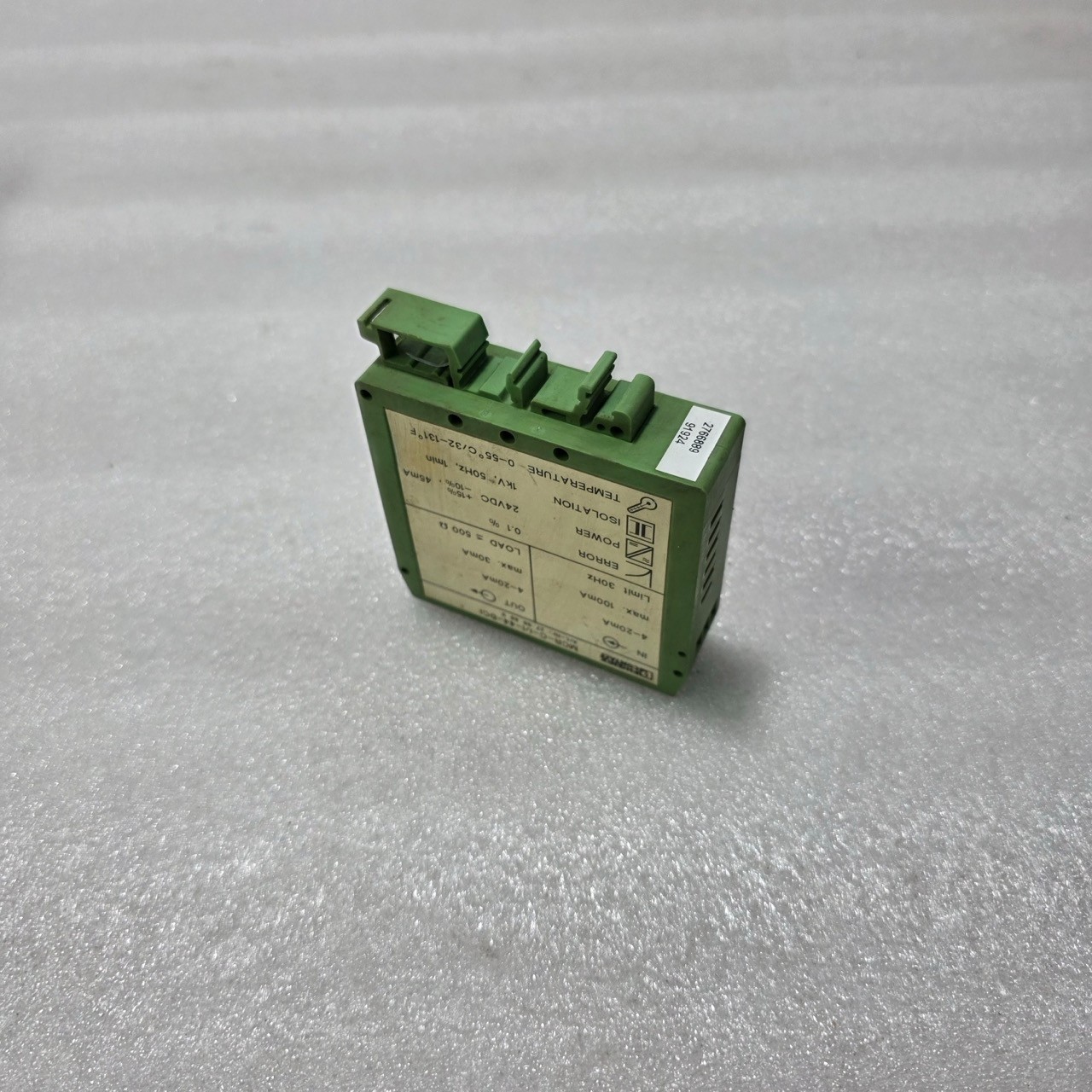

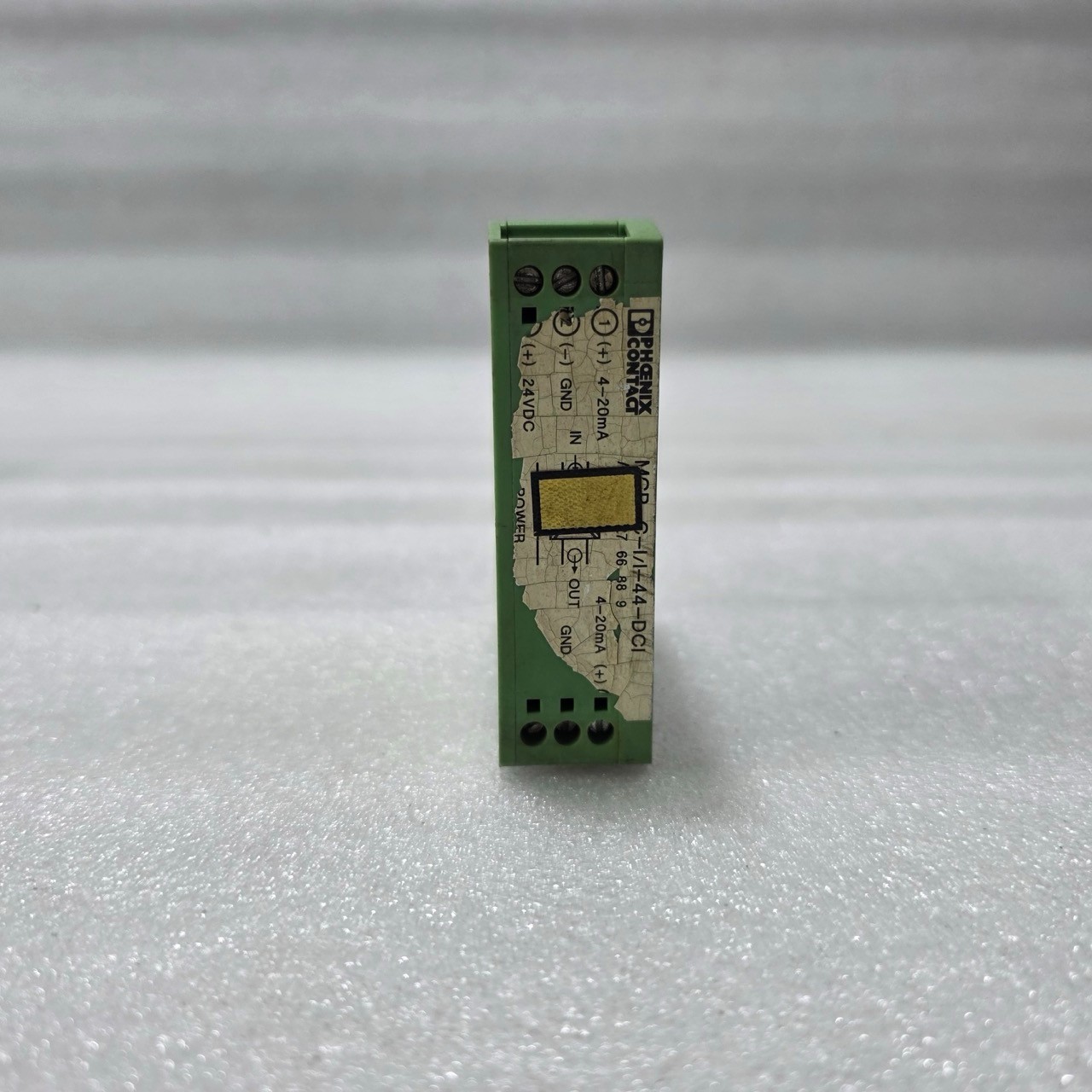

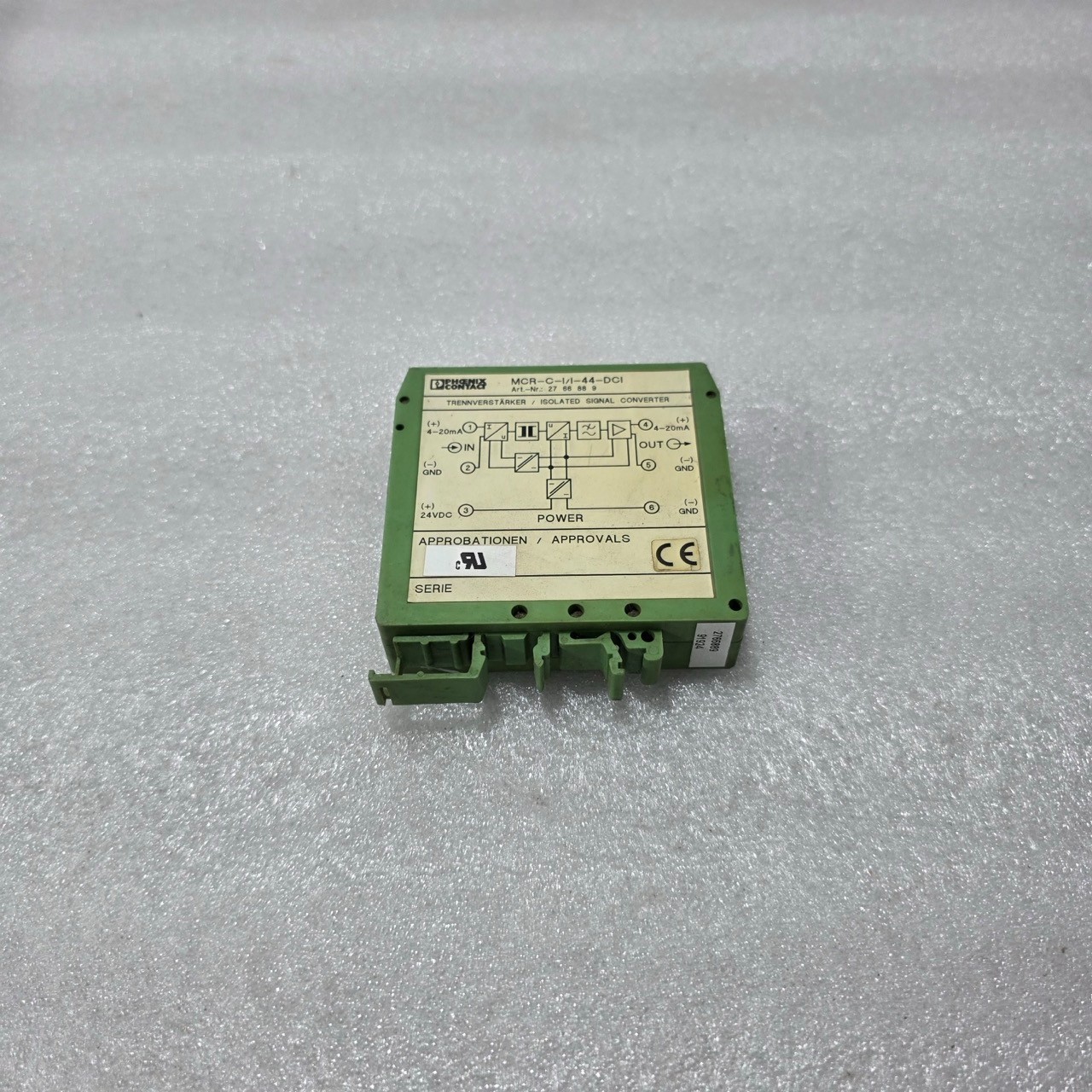

PHOENIX CONTACT MCR-C-I/I-44-DCI 4–20 MA ISOLATED SIGNAL CONVERTER 2766888 24 V DC

MAKER: PHOENIX CONTACT

MODEL: MCR-C-I/I-44-DCI

PART NO. (ART.-NR.): 27 66 88 8 (2766888)

TYPE: ISOLATED SIGNAL CONVERTER / CURRENT ISOLATOR (I → I)

INPUT SIGNAL: 4–20 MA (MAX. 100 MA)

OUTPUT SIGNAL: 4–20 MA (MAX. 30 MA)

SUPPLY VOLTAGE: 24 V DC (±10…15%), APPROX. 45 MA CONSUMPTION

LOAD (OUTPUT): ≤ 500 Ω

ACCURACY: 0.1 %

BANDWIDTH: LIMIT 30 HZ

ISOLATION: 1 KV, 50 HZ, 1 MIN (GALVANIC ISOLATION)

MOUNTING: DIN RAIL

APPROVALS: CE, UL RECOGNIZED

OPERATING TEMPERATURE: 0…55 °C (32…131 °F)

END USAGE: GALVANIC ISOLATION AND CONDITIONING OF 4–20 MA SIGNALS IN PLC, DCS, AND PROCESS AUTOMATION SYSTEMS; ELIMINATES GROUND LOOPS AND PROTECTS CONTROL ELECTRONICS
