• Product Detail:

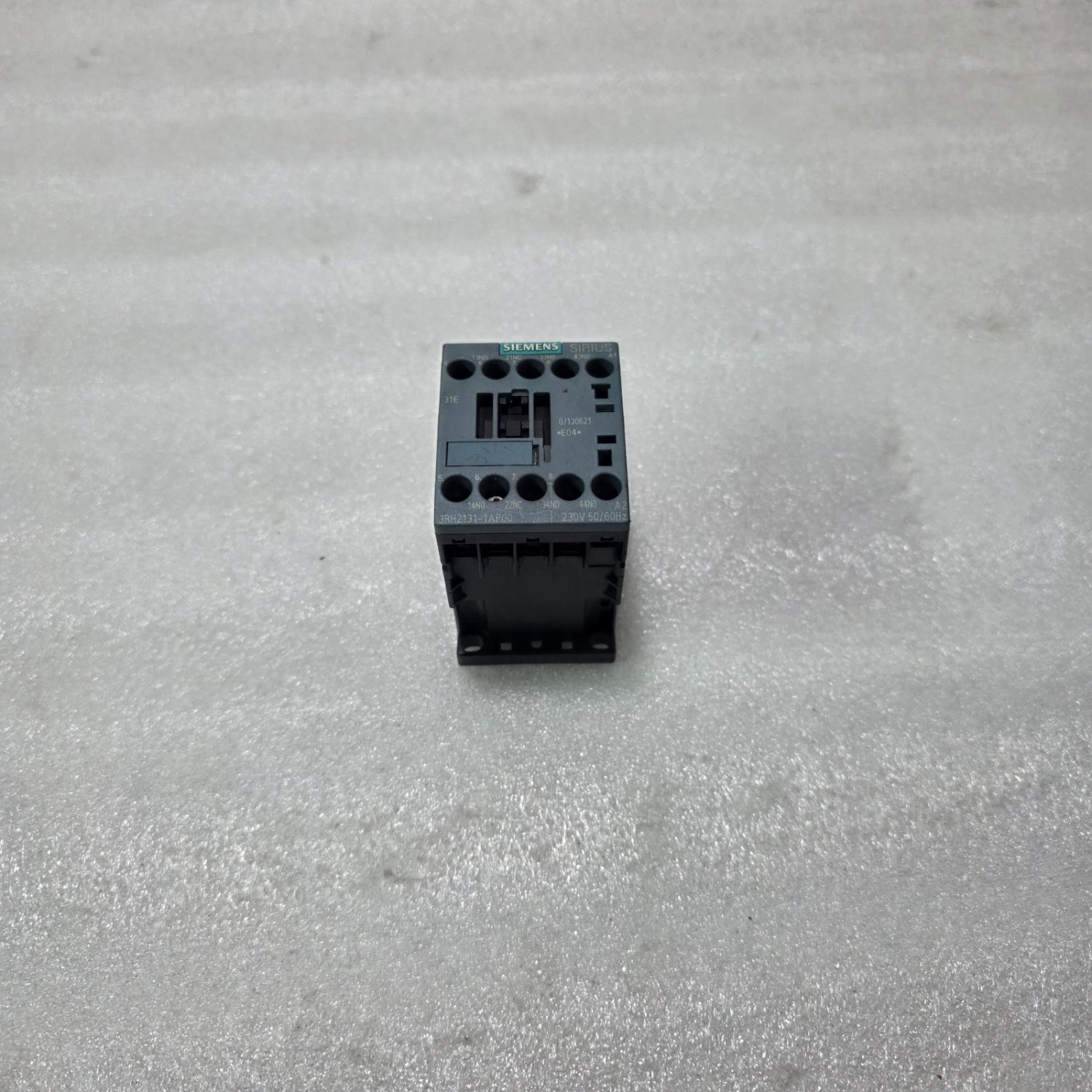

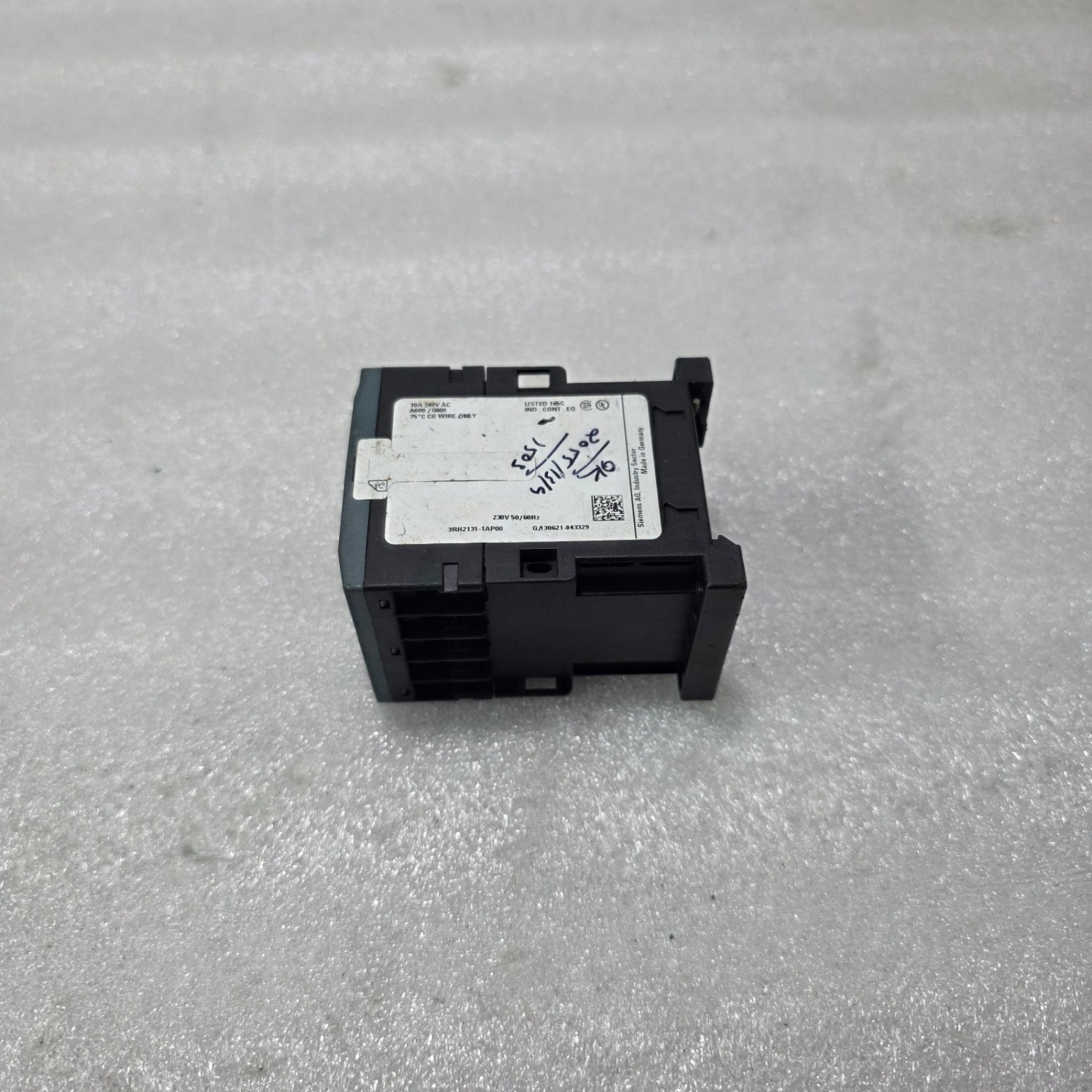

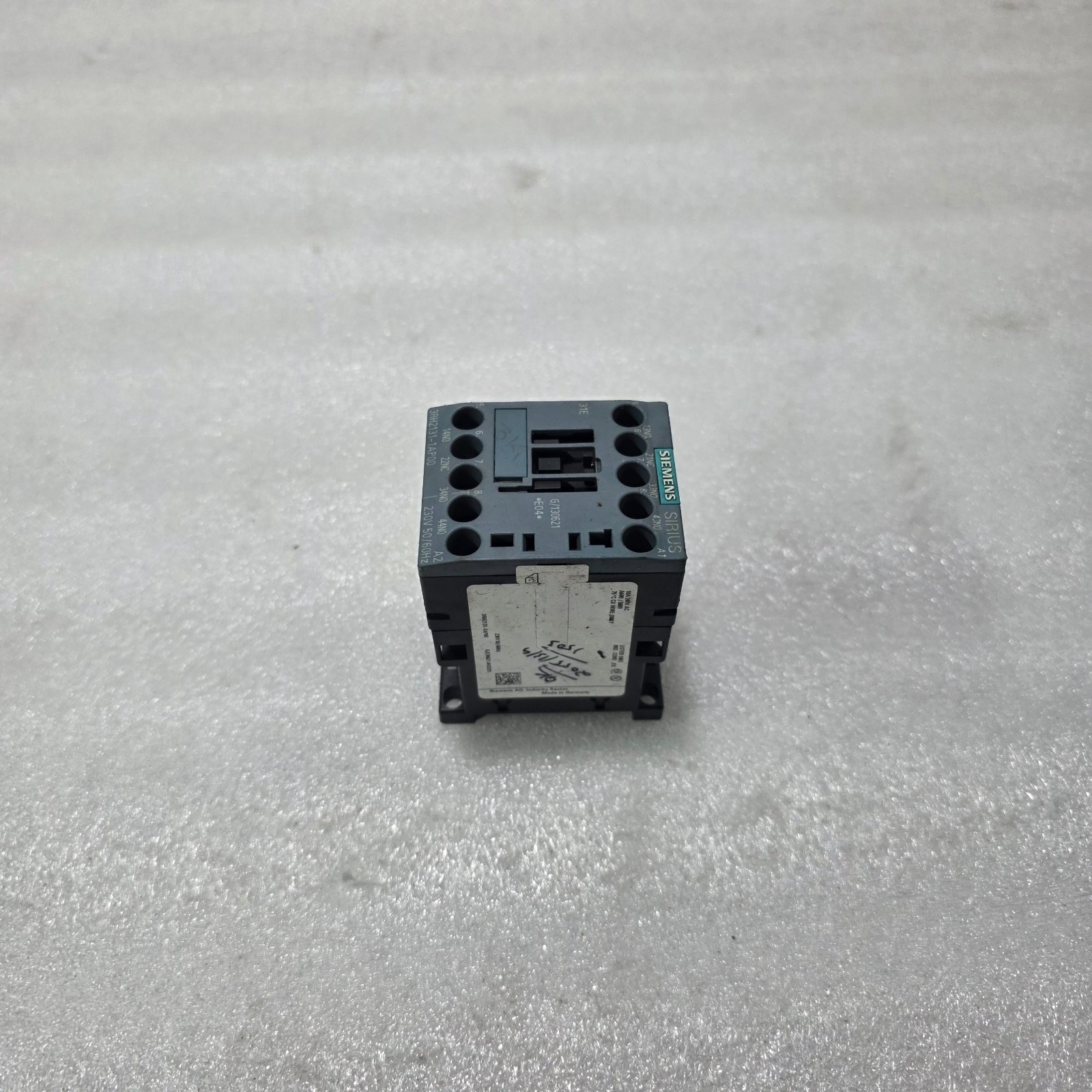

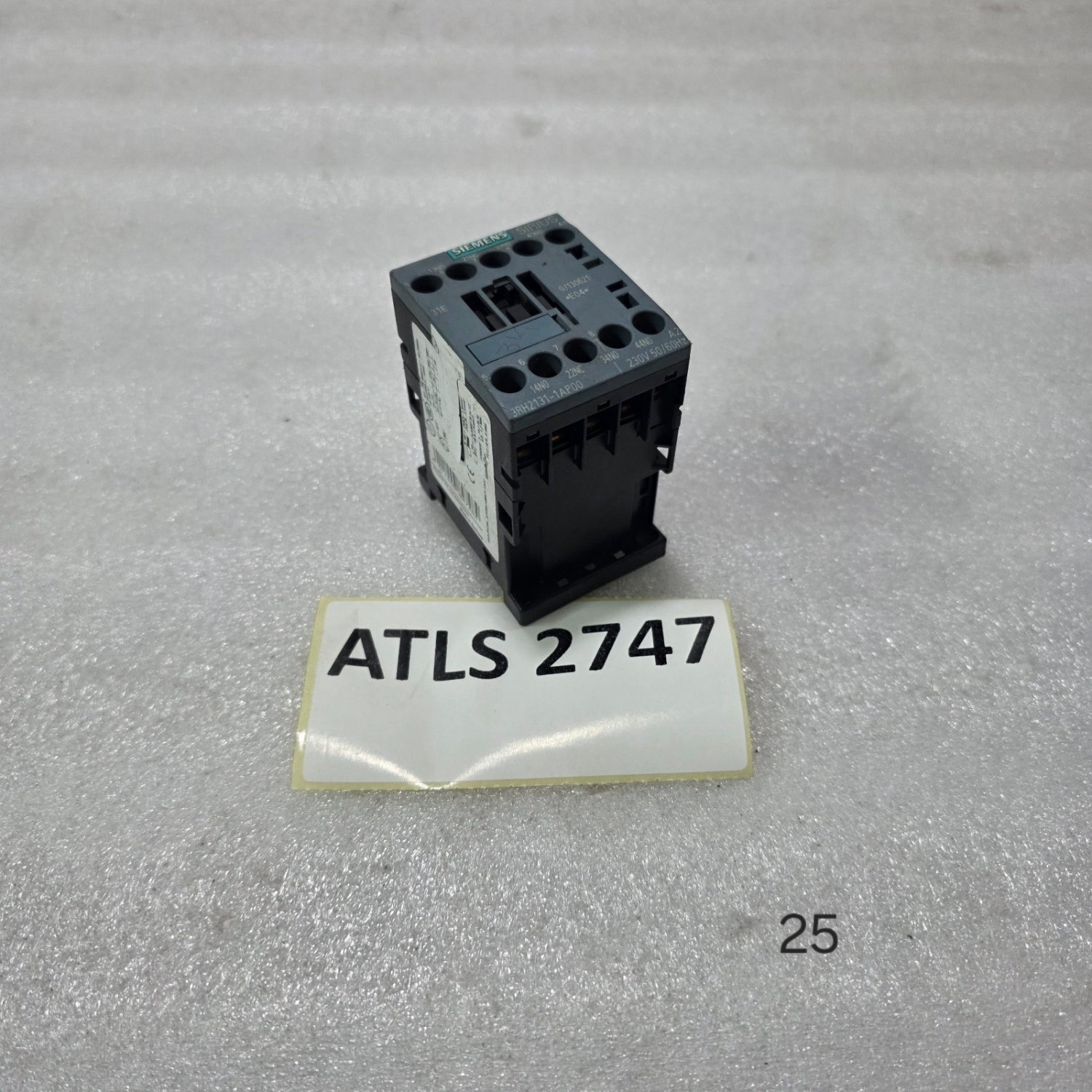

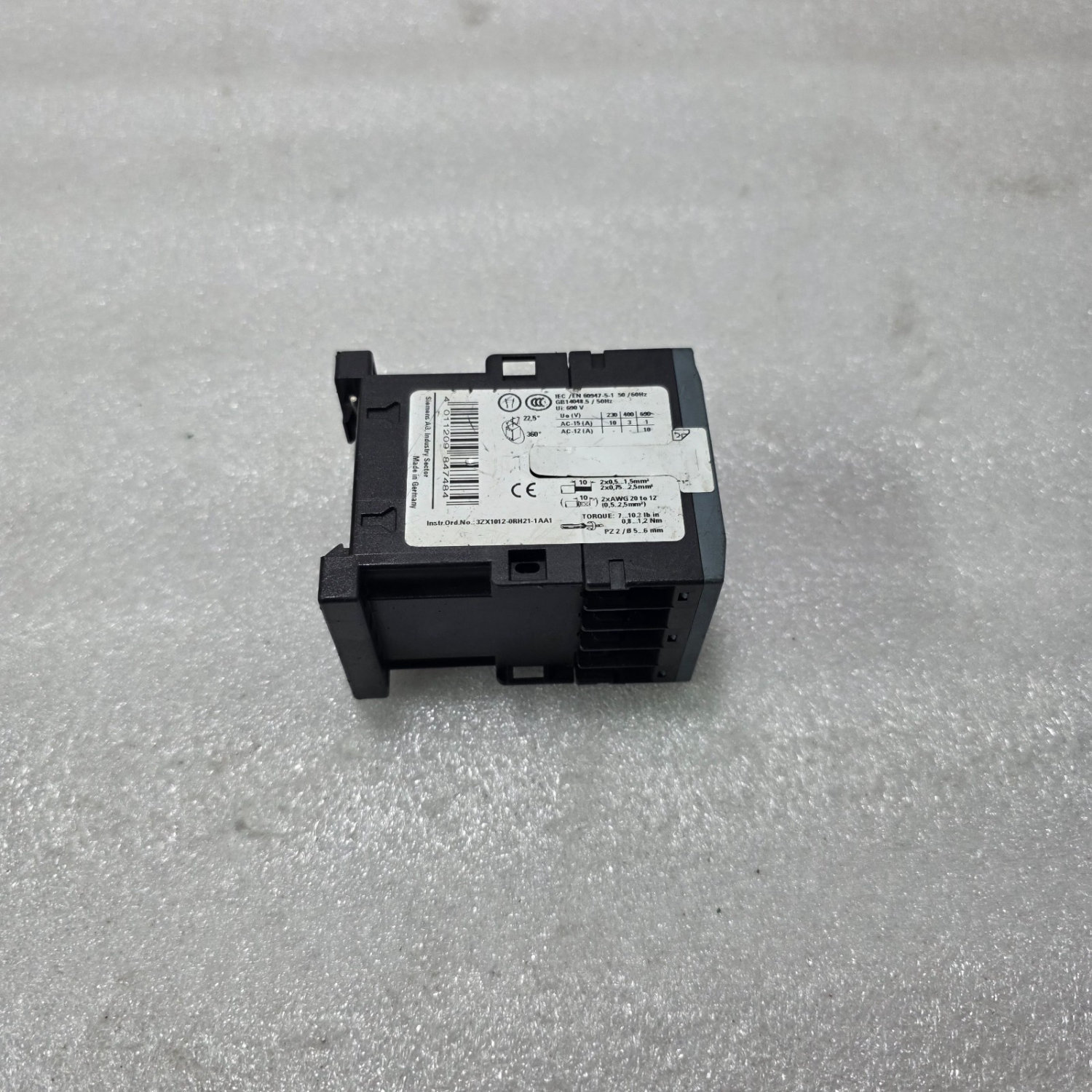

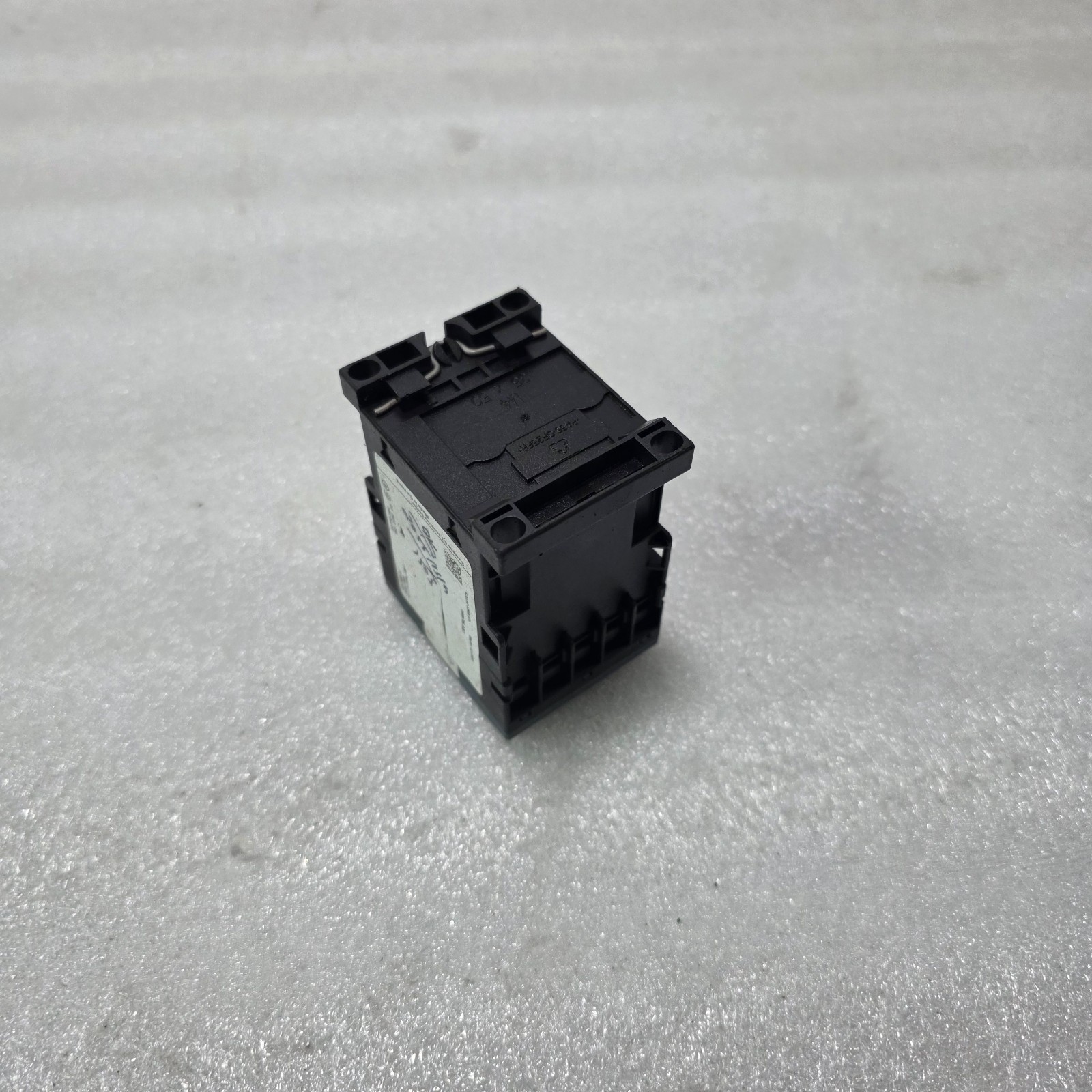

SIEMENS SIRIUS 3RH2131-1AP00 AUXILIARY CONTACTOR / CONTROL RELAY 4-POLE 3NO + 1NC COIL 230V AC, 50/60 Hz — IEC/EN 60947 Industrial Control Relay

BRAND: SIEMENS

SERIES / PRODUCT LINE: SIRIUS 3RH2

PART NUMBER: 3RH2131-1AP00

ALSO KNOWN AS: 3RH2 131-1AP00

TYPE: AUXILIARY CONTACTOR / CONTROL RELAY

NUMBER OF POLES: 4-POLE

CONTACT CONFIGURATION: 3NO + 1NC (13-14 NO, 21-22 NO, 31-32 NO, 43-44 NC)

COIL VOLTAGE (CONTROL): 230V AC, 50/60 Hz

RATED OPERATIONAL VOLTAGE: Up to 690V AC

RATED CURRENT AC-15 (Ie): 230V: 10A / 400V: 3A / 500V: 1A

RATED CURRENT AC-12 (Ie): 10A

WIRE CONNECTION RANGE: 0.5–1.5mm² solid; 0.75–2.5mm² flexible; AWG 20–12

TIGHTENING TORQUE: 0.8–1.2 Nm (7–10.3 lb-in)

SCREWDRIVER SIZE: PZ 2 / Ø 5–6 mm

INSULATION VOLTAGE (Ui): 690V

STANDARD / APPROVALS: IEC/EN 60947-5-1, GB14048.5, UL Listed, CE

INSTR. ORD. NO.: 3ZX1012-0RH21-1AA1

COUNTRY OF MANUFACTURE: MADE IN GERMANY
